AdaptHEAT ™ Innovative Solution for Hot Bonding Repair on Airbus A350, Boeing 787 and other Omega Stiffened Structures


1. INTRODUCTION & OBJECTIVES

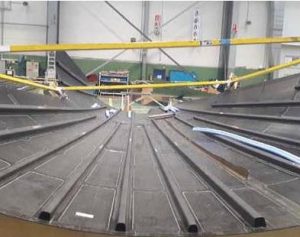

Appropriate curing of the patch resin and the adhesive layer is an essential step to secure the integrity and the sound mechanical performance of a bonded composite repair. The A350 B787 fuselage panels are carbon laminate structures reinforced with “Omega”/“Hat”-shaped carbon stringers. When heating a patch for repair, this complex structure makes it very difficult to achieve an uniform temperature distribution, while this performance is called imperiously for certification of the operation.

This technological issue has been challenged by GMI together with Airbus, within the frame of an EU funded Cleansky R&D project (NEWCORT). Thanks to its results to the development of the corresponding industrial solutions, GMI is now presenting to the operators a solution that is perfectly adapted to the problem in terms of performances and of conditions of implementation by the field technicians.

2. SYSTEM’S CHARACTERISTICS

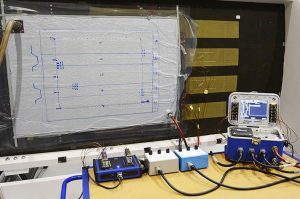

AdaptHEAT™ has been developed by GMI around an innovative heating circuit to develop uniform temperature distribution on a surface up to 80 x 80 cm of an “Omega”/“Hat”-stiffened panel. The innovation consists in a specially designed heating circuit with a certain electrical zoning «adapted» in power to the geometry and thickness of the structure, including sub-areas to develop heat accordingly to their thermal reactions. It is made to be associated with the GMI state-of-the-art bonding console Anita EZ that implements its unique control software for handling two zones of heating control and is programmed strategy to handle the thermocouple sensor data. For one type of stringer family, the operator selects the system according to the dimensions and the installation is made simple thanks to a template supplied appropriately.

3. SYSTEM’S PERFORMANCE

The system has been tested on actual structures and gives excellent performances that match the expectations for a structural repair .The graphic below shows how on a surface of 80 x 80 cm, stiffened by “Omega”/”Hat” stringers, all temperatures are grouped in a window of 140°C +/- 5 °C thanks to the «adaptation» of the heating circuit and its temperature control process handled by the console ANITA EZ.

4. APPLICATIBILITY – IMPLEMENTATION

The principles adopted for this design make AdaptHEAT™ solution applicable to all “Omega”/”Hat”-stiffened structures, like those  on Airbus, Boeing, Bombardier etc. Due to variations in stringer dimensions among constructors a family of products has been defined, accordingly, in the form of “kits”. It is highlighted that, in all cases, the standard ANITA EZ hot bonder can been used, meaning that there is no need for additional investment in hot bonders. In addition, GMI / Melchers offer a a special consulting training service to customers who decide to be supported for the delivery and initial implementation of the solution, through our network of experts in Europe & Asia.
